Product feature

 Concentric and Coaxial, higher efficiency

   Concentric and coaxial, NdFeB-made magneto, higher efficiency, lower consumption and longer distance.

 Good climbing performance

    Use second-speed output and larger starting torque, in favor of climbing.

 Adopt for various riding module

   Good transmission system can be adopted for various riding module.

 Easy Operating, Fast Assembly

   Can meet different type of bikes’ assembly, such as general bike, foldable bike, mountain bike and road bike, easy operating.

Engine Parameter

  Voltage   DC 36V
  No-load point       Current(A)   ≤1.0
  Engine speed(RPM)   90±5
  Rated point          Output power(W)   250
  Engine speed(RPM)   85±5
  Efficiency (%)   ≥ 78
  Torque(Nm)   ≥ 30
  Current(A)   ≤ 9
  Max. point   Max. torque(N·m)   ≥ 72
  Max. efficiency (%)   ≥ 80
  Current limit(A)   14

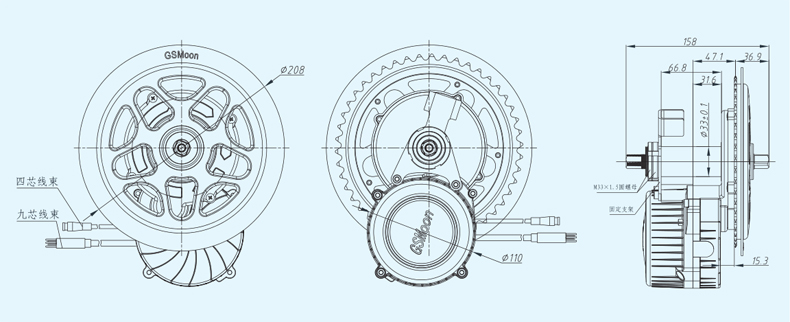

Installation Drawing
